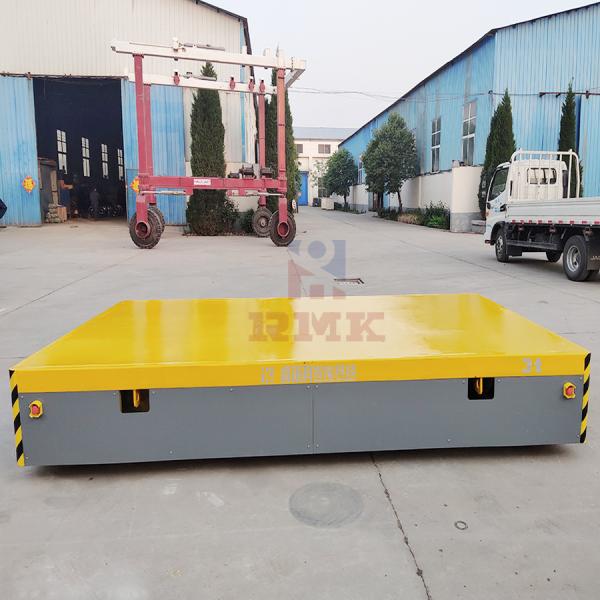

Steerable 3 Tons Electric Flat Car , Motor Driven Automatic Transfer Cart

Product Categories
Henan Remarkable Intelligent Technology Co., Ltd.
Contact Now

Steerable 3 Tons Electric Flat Car , Motor Driven Automatic Transfer Cart

Brand Name : Remarkable

Model Number : RWP

Certification : CE, ISO

Place of Origin : Henan, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 600

Delivery Time : 30-45 work days

Packaging Details : 1.Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.

Power supply : Maintenance free battery

Load : 3 tons

other name : trackless transfer wagon

Operation method : Wireless remote control & Hand operate pendant

Traveling speed（m/min） : 0-30 (Stepless speed regulation)

Brake mode : Electromagnetic brake

application area : Material transportation

Move Way : Forward, backward, turning while driving with no stop

Contact Now

Steerable 3 Tons Electric Flat Car , Motor Driven Automatic Transfer Cart

Trackless flat car is powered by battery and controlled by manual remote controller. It is easy to operate and flexible. It can complete 360° rotation in place. It can be transported flexibly in the workshop. Considering the safety problem, the four corners of the car body are ground into light angles, and the stop function, slow start and slow stop function are added, which greatly enhances the customer's experience. Heavy trackless electric flat car can adapt to fixed semi open roads, commuting in parks or internal plants, BRT lines with strong external sealing, etc.. The cost will be more than 20% of the current solution, the delivery time will be reduced by 30% to 50%, and the installation time of a single module will be less than 30 minutes. Every link and test is the touchstone of the quality of BYD pure electric buses. The vehicles are completed more than expected under harsh conditions, with outstanding adaptive performance, and build an industry strength benchmark with technology and quality.

Steerable 3 Tons Electric Flat Car , Motor Driven Automatic Transfer Cart

Steerable 3 Tons Electric Flat Car , Motor Driven Automatic Transfer Cart

Technical parameters for electric transfer carts
1 rated load(t) 5 10 15 20 30 40 50 150
2 impacted rated load(t) 7.5 15 22.5 30 45 60 75 225
3 structure of frame steel plates welded, beam structure
4 max. wheel load(t) 2.8 4.3 4.8 5.6 7.7 10 12 27
5 ground requirement cement floor steel plate ground
6 table size(mm) 3000×2000 3600×2000 4000×2200 4500×2200 5000×2200 5500×2300

6000×

2300

10000×

3000
7 height of the whole cart(mm) 450 530 600 600 650 700 700 1200
8 ground clearance(mm) 50 75
9 wheels base(mm) 1500 1700 1800 2000
10 axles distance(mm) 2500 3100 3400 3900 4300 4800 5200 10000
11 turning radius(mm) 2501 3101 3401 3901 4301 4801 5201 10001
12 turning type turning while driving with no stop
13 control method for turning control button
14 turning structure mechanical
15 motor power(Kw) 3.5 5 6 7 10 12 15 15
16 wheel diameter(mm) Ф300 x 4 Ф350 x 4 Ф400 x 4 Ф400 x 6 Ф500 x 6 Ф600 x 8
21 battery model D-250 x 24 D-33 x 24 D-400 x 24 D-440 x 24 D-250 x 36 D-330 x 36 D-440 x 36 D-600 x 36
22 battery maintenance free of maintenance
23 charger's installation installed on cart split-type
24 charger function automatic charging
25 radar control 3-0.3m, automatic stop for obstacles
26 warning equipment sound and light
27 other functions turning light, night light and power display

Steerable 3 Tons Electric Flat Car , Motor Driven Automatic Transfer CartSteerable 3 Tons Electric Flat Car , Motor Driven Automatic Transfer CartSteerable 3 Tons Electric Flat Car , Motor Driven Automatic Transfer CartSteerable 3 Tons Electric Flat Car , Motor Driven Automatic Transfer CartSteerable 3 Tons Electric Flat Car , Motor Driven Automatic Transfer CartSteerable 3 Tons Electric Flat Car , Motor Driven Automatic Transfer CartSteerable 3 Tons Electric Flat Car , Motor Driven Automatic Transfer CartSteerable 3 Tons Electric Flat Car , Motor Driven Automatic Transfer CartSteerable 3 Tons Electric Flat Car , Motor Driven Automatic Transfer CartSteerable 3 Tons Electric Flat Car , Motor Driven Automatic Transfer CartSteerable 3 Tons Electric Flat Car , Motor Driven Automatic Transfer Cart
