Steel Billet Heavy Load Transfer Cart

Product Categories

Henan Remarkable Intelligent Technology Co., Ltd.

Contact Now

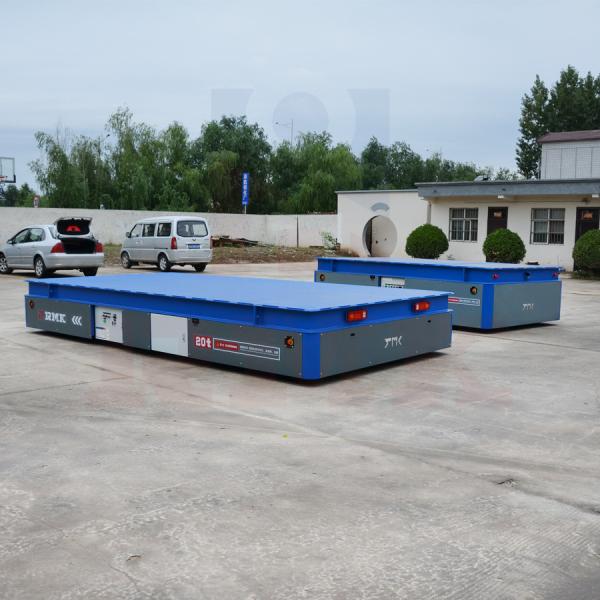

Steel Billet Heavy Load Transfer Cart

Name: Steel Billet Heavy Load Transfer Cart
Brand: Remarkable
Price: 1 USD

Wholesale Steel Billet Heavy Load Transfer Cart from china suppliers

Brand Name : Remarkable

Model Number : RWP-20T

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, D/A, D/P, L/C, Western Union, MoneyGram

Supply Ability : 300 sets per year

Delivery Time : 30-45 days

Packaging Details : The whole cart will be packed by the tarp, the parts will be packed by polywood case.

After-sales service provided : commissioning and training

Color : Customized

Application : Industry metallurgy, Material handling/steel coil/industrial

Capacity : 20 tons

Power supply : Battery

Load capacity : customized

Running speed : 0-20m/min

Power source : battery

Usage : material transferring

Safety features : Warning alarm and End stop, end stop, Warning alarm

Control model : wireless remote control and hand pendant

Contact Now

Steel Billet Heavy Load Transfer Cart

^{Remarkable Trackless Transport Vehicle Weighs From 1 Ton To 300 Tons. Heavy Trackless Transfer Trolley Is Convenient For Manufacturing Large Mechanical Equipment And Transporting Heavy Materials Such As Concrete And Mold. It Is Suitable For Large Production Workshops, Sites And Outdoor Sites. It Does Not Need To Lay Track. It Is More Convenient And Flexible To Use, Reduces Production Costs And Improves Work Efficiency.

20 Tons Battery Steerable Transfer Trolley Is Suitable For Material Handling And Transportation In Various Industries. The Light-Weight Trackless Vehicle Is Easier To Realize High Intelligence And Can Customize The Steering Wheel System, Lifting System, Positioning System And Wireless Communication System Intelligent AGV, Such As Unified, Is Favored By Many Production Enterprises.}

Steel Billet Heavy Load Transfer Cart

Technical parameters for trackless electric transfer carts
rated load(t)	5	10	15	20	30	40	50
impacted rated load(t)	7.5	15	22.5	30	45	60	75
structure of frame	steel plates welded, beam structure
max. wheel load(t)	2.8	4.3	4.8	5.6	7.7	10	12
ground requirement	cement floor					steel plate ground
ground requirement	cement floor					steel plate ground
table size(mm)	3000×2000	3600×2000	4000×2200	4500×2200	5000×2200	5500×2300	6000×2300
height of the whole cart(mm)	450	530	600	600	650	700	700
ground clearance(mm)	50
wheels base(mm)	1500		1700			1800
axles distance(mm)	2500	3100	3400	3900	4300	4800	5200
turning radius(mm)	2501	3101	3401	3901	4301	4801	5201
turning type	turning while driving with no stop
control method for turning	control button
turning structure	mechanical
motor power(Kw)	3.5	5	6	7	10	12	15
wheel diameter(mm)	300 x 4	350 x 4		400 x 4	400 x 6	500 x 6
wheel material	ZG55+hydropur ture
running speed(m/min)	0-20
brake principle	electric magnetic brake
operation method	with wire or no wire
battery maintenance	free of maintenance
charger's installation	installed on cart				split-type
radar control	3-0.3m, automatic stop for obstacles
warning equipment	sound and light
other functions	turning light, night light and power display

Steel Billet Heavy Load Transfer Cart
