25 Tons Aluminum Coil Transfer Car Non Power Pulling Material Transport

Henan Remarkable Intelligent Technology Co., Ltd.
Contact Now

25 Tons Aluminum Coil Transfer Car Non Power Pulling Material Transport

Brand Name : Remarkable

Model Number : RWT

Certification : CE, ISO

Place of Origin : Henan, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 600

Delivery Time : 30-45 work days

Packaging Details : 1. Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.

Power supply : Maintenance free battery

Load : 25 tons

other name : non-powered transfer cart

Operation method : Wireless remote control & Hand operate pendant

Traveling speed(m/min) : 0-20 (Stepless speed regulation)

Brake mode : Electromagnetic brake

application : Work line

Move Way : Forward, backward, turning while driving with no stop

Contact Now


25 Tons Aluminum Coil Transfer Car Non-Power Pulling Material Transport

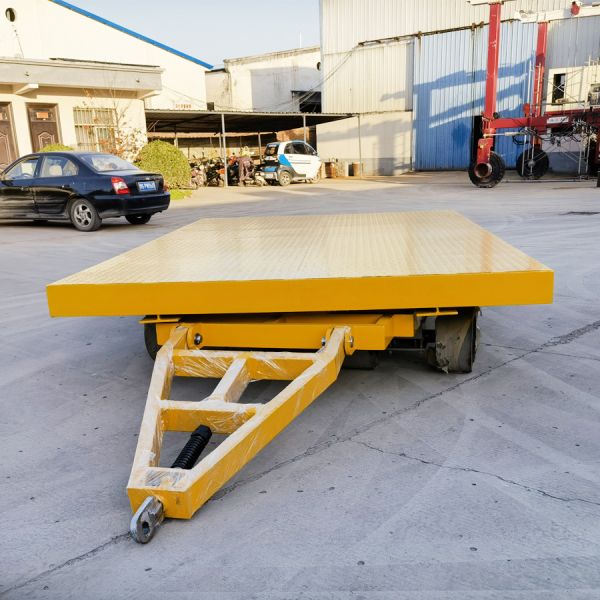

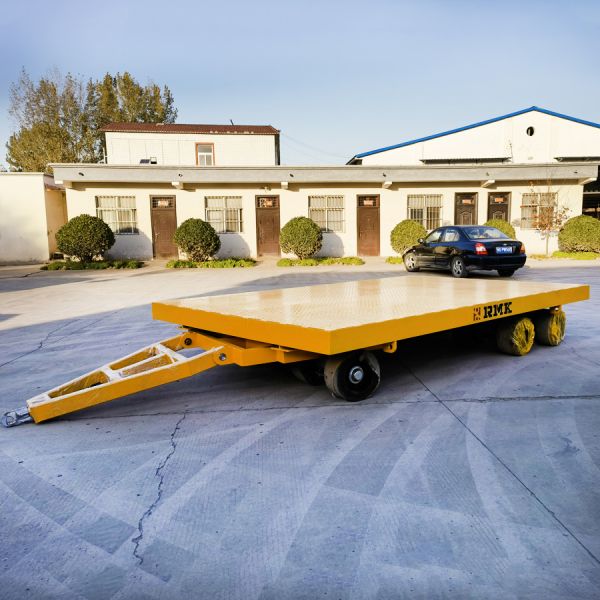

the towed transfer trolleys has no power system. It is pulling by winch or forklift and other electric powered trolleys. The can divided into rail type towed transfer trolley(running on the rail, with rail cast wheels) and steerable type towed transfer trolley(runing on the ground, with rubber wheels).

This kinds towed transfer trolley can be customized according your real demands, the capacity load up to 500 tons.

Compared with other series electric powered transfer trolleys, this kinds non power towed transfer trolleys with the following advantages, low cost, unlimtied use time.

This kind of battery operated transport cart is commonly applied in factory workshop or warehouse to transfer materials, such as injection mold, steel coil, machine parts.aluminium coil etc.

The die and mould transfer car is mainly used in steel mills, aluminum plant, lead factory, other high temperature and metallurgy industry.

25 Tons Aluminum Coil Transfer Car Non Power Pulling Material Transport25 Tons Aluminum Coil Transfer Car Non Power Pulling Material Transport

25 Tons Aluminum Coil Transfer Car Non-Power Pulling Material Transport

Coil transfer car is a kind of modern workshop handling equipment for coil from one bay to another. It works on rails and table dimension and load capacity can be customzied. It can transport one coil or 3-5 coils for each time. There are V-shape mounted on the cart to ensure the coils safety in the transportation.

Features --- Aluminum Coil Transfer Car

Safe and flexible

Material:steel

Steel box beam structure

Beautiful appearance

Low noise

Application --- Aluminum Coil Transfer Car

Aluminum coil plant, steel coil mill,paper coil.

Run mainly on the straight railways, but it also can be specially used both on the ‘S’ and arc-shaped railways to carry many different kinds of stuff.

Technical parameters for electric transfer carts
1 rated load(t) 5 10 15 20 30 40 50 150
2 impacted rated load(t) 7.5 15 22.5 30 45 60 75 225
3 structure of frame steel plates welded, beam structure
4 max. wheel load(t) 2.8 4.3 4.8 5.6 7.7 10 12 27
5 ground requirement cement floor steel plate ground
6 table size(mm) 3000×2000 3600×2000 4000×2200 4500×2200 5000×2200 5500×2300

6000×

2300

10000×

3000

7 height of the whole cart(mm) 450 530 600 600 650 700 700 1200
8 ground clearance(mm) 50 75
9 wheels base(mm) 1500 1700 1800 2000
10 axles distance(mm) 2500 3100 3400 3900 4300 4800 5200 10000
11 turning radius(mm) 2501 3101 3401 3901 4301 4801 5201 10001
12 turning type turning while driving with no stop
13 control method for turning control button
14 turning structure mechanical
15 motor power(Kw) 3.5 5 6 7 10 12 15 15
16 wheel diameter(mm) Ф300 x 4 Ф350 x 4 Ф400 x 4 Ф400 x 6 Ф500 x 6 Ф600 x 8
21 battery model D-250 x 24 D-33 x 24 D-400 x 24 D-440 x 24 D-250 x 36 D-330 x 36 D-440 x 36 D-600 x 36
22 battery maintenance free of maintenance
23 charger's installation installed on cart split-type
24 charger function automatic charging
25 radar control 3-0.3m, automatic stop for obstacles
26 warning equipment sound and light
27 other functions turning light, night light and power display

25 Tons Aluminum Coil Transfer Car Non Power Pulling Material Transport25 Tons Aluminum Coil Transfer Car Non Power Pulling Material Transport25 Tons Aluminum Coil Transfer Car Non Power Pulling Material Transport25 Tons Aluminum Coil Transfer Car Non Power Pulling Material Transport25 Tons Aluminum Coil Transfer Car Non Power Pulling Material Transport

25 Tons Aluminum Coil Transfer Car Non Power Pulling Material Transport

Henan Remarkable Intelligent Technology Co., Ltd is a professional handling equipment company integrated intelligent R&D, design, manufacturing, sales as well as after-sales service. It specializes in producing electric transfer carts of various tonnages, handling equipment accessories, intelligent crane and crane accessories with professional design, development and manufacture of non-standard, intelligent electric transfer carts and handling robots. According to different power mode, the handling equipment products can be divided into six series including low-voltage track-powered, battery-powered, towline-powered, cable reel-powered, safe-trolley-line powered, and unpowered traction.25 Tons Aluminum Coil Transfer Car Non Power Pulling Material Transport25 Tons Aluminum Coil Transfer Car Non Power Pulling Material Transport25 Tons Aluminum Coil Transfer Car Non Power Pulling Material Transport25 Tons Aluminum Coil Transfer Car Non Power Pulling Material Transport
